Chimney Crown Repair & Replacement in Chicago

Chimney Crown Repair in Chicago and the Suburbs

The crown is the concrete or mortar slab at the very top of a masonry chimney. Its only job is to shed water away from the brick and the flue tiles below it, and it is the single most important piece of weather protection on the chimney. It is also the piece most often built wrong.

Chimney Monkey repairs and rebuilds chimney crowns throughout Chicago and the surrounding suburbs. Call 847-994-4388 or request an estimate.

Why So Many Crowns Fail Early

A crown built to last is a cast concrete slab that overhangs the chimney on all sides with a drip edge, slopes away from the flue tile, is at least a couple of inches thick at its thinnest point, is reinforced, and has an expansion joint where it meets the flue tile so the tile can move independently.

What most Chicago-area chimneys actually have is a thin skim of mortar troweled flush with the brick edge, no overhang, no slope, no reinforcement, and mortar bonded directly to the flue tile. Mortar is not a waterproofing material, and bonding it to tile guarantees cracking, because the tile expands when it heats and the crown does not. Add twenty Chicago winters of water sitting on a flat surface and freezing, and you get the hairline cracks, then the open cracks, then the missing chunks that we get called about.

What a Failing Crown Actually Does to the Chimney

A cracked crown is not a cosmetic problem, and this is the part homeowners underestimate. Once water gets through the crown it goes into the top courses of brick and into the gap between the flue tile and the masonry.

From there it does three things. It freezes and expands, breaking the face off the brick — that is spalling, the flaking and popping you can see from the ground. It dissolves and washes out mortar joints, which is why the top of the chimney is always the first part to need tuckpointing. And it saturates the masonry so the whole structure stays wet, which accelerates every other form of deterioration and eventually shows up as staining on the ceiling inside.

A crown repair is a few hundred to a few thousand dollars depending on the chimney. A top-third rebuild caused by ten years of ignoring a cracked crown is a different conversation entirely.

Repair or Replace?

Not every cracked crown needs to come off. We look at three things: how deep the cracks go, whether the crown has the right geometry to begin with, and what condition the brick underneath is in.

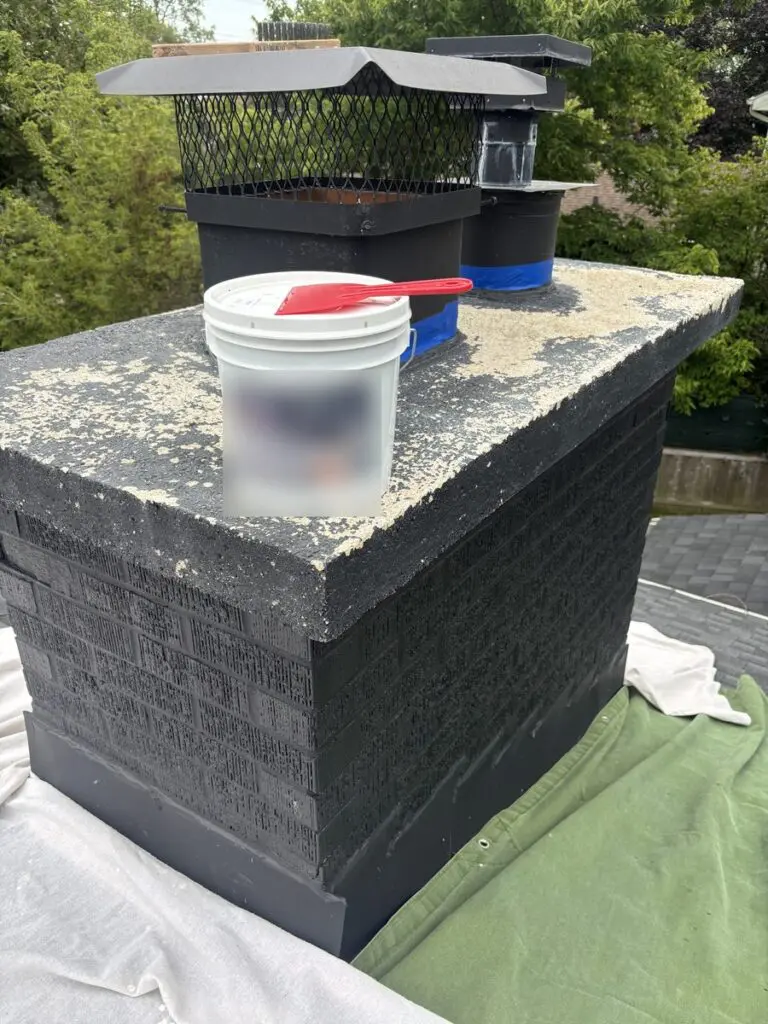

Crown sealing is appropriate for a structurally sound crown with hairline cracking. We clean the surface and apply a flexible elastomeric crown coating that bridges hairline cracks and stays flexible through temperature swings. It is a real repair with a real service life, not a patch, but it only works on a crown that is otherwise sound.

Crown rebuilding is what we do when the crown is thin, flat, has no overhang, is broken into pieces, or is missing sections. We remove the old crown, rebuild the top course of brick if it needs it, form and pour a new reinforced concrete crown with a proper overhang, drip edge, and slope, and install a bond break at the flue tile so the tile can expand without cracking the new crown.

We will tell you honestly which one your chimney needs. Sealing a crown that should be replaced just delays the same work by two years.

What Chimney Crown Repair Costs

Crown resurfacing is about $550. That is the price for a structurally sound crown with hairline cracking, cleaned and coated with a flexible elastomeric membrane. Crown replacement runs $850 to $2,600, and where you fall in that range depends mostly on the size of the crown and how hard it is to reach. Replacement means removing the old crown, rebuilding the top brick course where needed, and forming and pouring a new reinforced concrete crown with overhang, drip edge, slope, and an expansion joint at the flue tile. Full pricing on our chimney repair cost page.

Crown work is priced per chimney because the variables are real: the size of the chimney and the number of flues, whether the crown can be sealed or has to be rebuilt, how much brick under it needs replacing, roof pitch and access, and whether scaffolding or a lift is needed. A single-flue crown on an accessible roof is a very different job from a four-flue crown on a steep slate roof three stories up.

We give you a written price after we see the chimney, and estimates are free. Where we find that the crown is only part of the problem, the proposal breaks out crown, masonry, cap, and liner separately so you can decide what to do now and what can wait.

Crown, Cap, and Waterproofing Work Together

Repairing a crown while leaving the flue uncapped solves half the problem. The crown protects the masonry; the cap protects the flue. Doing both in the same visit costs less than two trips and is the combination that actually keeps the chimney dry. A stainless masonry or utility cap runs about $320 to $450 installed.

On chimneys where the brick has already absorbed a lot of water, we also recommend a breathable masonry water repellent. The key word is breathable: a film-forming sealer traps moisture inside the brick and makes spalling worse, which is why we do not use them.

Signs Your Crown Needs Attention

From the ground you can often see cracks across the crown, pieces of concrete missing at the corners, or the crown sitting flush with the brick instead of overhanging it. On the roof, look for standing water after rain, gaps where the crown meets the flue tile, and a rough, sandy surface that crumbles when you touch it.

Inside, the signs are indirect: debris in the firebox, white efflorescence staining on the exterior brick, a damp smell near the fireplace, or a stain on the ceiling next to the chimney. Any of those is worth an inspection, which is $205 and includes photographs of what we find.

Timing: Get It Done Before Winter

Crown work is masonry work, and masonry needs temperatures above freezing to cure properly. In the Chicago area that realistically means late spring through fall. A crown that is cracked in October will be worse in April, because every freeze-thaw cycle drives the cracks a little wider. If you find a problem in late fall, we can often cap the flue and cover the crown to get through the winter and schedule the permanent repair for spring.

Where We Repair Chimney Crowns

We repair and rebuild crowns throughout Chicago and the north, northwest, and western suburbs, including Buffalo Grove, Deerfield, Northbrook, Glenview, Winnetka, Wilmette, Highland Park, Lake Forest, Evanston, Skokie, Barrington, Arlington Heights, Palatine, Glen Ellyn, Elmhurst, Oak Brook, and Naperville. Our shop is at 741 Hastings Dr, Buffalo Grove, IL 60089.

Chimney Crown Repair FAQs

How much does chimney crown repair cost?

It depends on the size of the chimney, the number of flues, whether the crown can be sealed or must be rebuilt, how much brick underneath needs replacing, and roof access. We price each chimney after seeing it and estimates are free.

What is the difference between a chimney crown and a chimney cap?

The crown is the concrete slab covering the masonry at the top of the chimney. The cap is the metal cover over the flue opening. The crown keeps water out of the brick; the cap keeps water and animals out of the flue.

Can a cracked chimney crown be sealed instead of replaced?

Yes, if the crown is structurally sound with only hairline cracking. A flexible elastomeric coating bridges those cracks. A crown that is thin, flat, broken, or missing sections needs to be rebuilt.

How long does a chimney crown last?

A properly formed reinforced concrete crown with an overhang, drip edge, and slope should last decades. The thin mortar wash found on many chimneys typically starts cracking within ten to fifteen years in this climate.

What happens if I ignore a cracked crown?

Water enters the top of the chimney, freezes, and spalls the brick, washes out mortar joints, and eventually reaches the interior. Ignored long enough, a crown repair turns into a partial chimney rebuild.

Can crown repair be done in winter?

Masonry needs above-freezing temperatures to cure, so permanent crown work is scheduled spring through fall. We can cap and cover a damaged crown to get through winter and do the repair when conditions allow.
